Thermal Imaging and NFPA: 70B Inspections !

Infrared thermography (IRT), thermal imaging, and thermal video are examples of infrared imaging science.

Thermographic cameras usually detect radiation in the long-infrared range of the electromagnetic spectrum (roughly 9,000–14,000 nanometers or 9–14 µm) and produce images of that radiation, called thermograms.

Since infrared radiation is emitted by all objects with a temperature above absolute zero according to the black body radiation law, thermography makes it possible to see one's environment with or without visible illumination.

The amount of radiation emitted by an object increases with temperature; therefore, thermography allows one to see variations in temperature.

When viewed through a thermal imaging camera, warm objects stand out well against cooler backgrounds; humans and other warm-blooded animals become easily visible against the environment, day or night. As a result, thermography is particularly useful to the military and other users of surveillance cameras.

The BIG CHANGE for thermography, or the ability to detect and measure infrared energy, is that NFPA: 70B 2023 has transitioned from providing recommended practices to mandating industry standards.

This includes covering the required development, implementation, and operation of an electrical maintenance program (EPM).Apr 26, 2023

Understanding 2023 NFPA: 70B

1. Standard for electrical equipment maintenance.
2. How to administer safer, more reliable and efficient electrical preventive maintenance programs
3. Frequency of maintenance for common electrical equipment.
4. Equipment condition assessment and product scope of work.

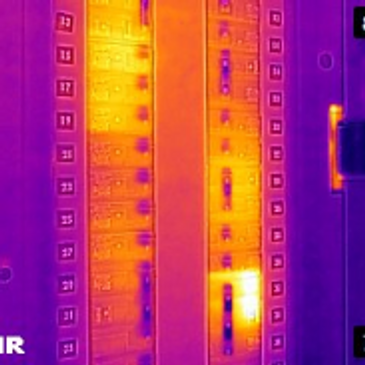

5.  All equipment Infrared Thermography.
